Gaming Discussions

Adept II

Input Lag and Mouse Movement Tweaks for Gaming v3 2020 Edition


This guide is meant to explore and expand discussion into what causes Input Lag(going to be regarded as IL) and mouse movement. If you do not see a point in reducing as much input lag as possible, that is fine, but this is for people who enjoy the feeling of high responsive gameplay/desktop environments such as back during XP or windows 7 days or at least make the mouse feel that way again.

I will be going over why I do this and which tweaks I feel help. They will be separated into Best, Other, GPU, and Tin Foil. Best are just the best, Other are ones that I do not deem too necessary, GPU are just AMD GPU settings, and Tin Foil are ones I feel is too difficult to determine whether if it's placebo or not. Please keep in mind, almost all of these tweaks have a link associated with the tweak/line. Also keep in mind that this is ongoing research, there is very little to no research at all on this topic besides several youtubers and forums and everything is always subject to change. This guide is meant to bring all the best tweaks together and test them out so feedback is much appreciated.

[There's tons of links riddled all over this guide. Make sure to hover over text to see if they have a link.]


I have lived with input lag on my Ryzen build for 2 years but had IL(Input Lag) for 4 years due to windows 10. I had no clue why I had so much IL in all of my games and desktop compared to my previous FX and Athlon builds and after 2 years of research I have found some tweaks that can help. <Note> I am using the same setup: mouse, 144hz monitor, room, outlet as my previous setups so I can feel the performance differences.

I bought some FX parts for cheap included with an r9 270 and have finally determined that my Polaris GPU the RX 580 8gb has an insane amount of IL. Casual gamers/users will not notice but competitive gamers who play FPS's, Fighters, Racing games will most definitely notice. The inability to hit a target, or react to an attack or corner is all directly linked to IL.

There may be other Polaris GPUs that also have IL(Input Lag) but me and some other people have all confirmed there is IL in the 580 and not just from one brand either(Mine was XFX RX 580 8GB XXX Black Edition):

I do not know if reference versions make a difference as I have not tested them. I hear 3rd party GPUs can sometimes introduce IL through bios and software changes, and that the reference R9 290s are king tier when it comes to IL.

Turns out there is input lag differences for CPUs and GPUs! As tested by Tech Yes City with a 1000fps camera, the Ryzen 2700x gets much less input lag than 9900k in desktop and workbenches. HOWEVER, the 9900k and Xeon 1680 both get much lower input lag in CSGO than the 2700x. The main cause of this is due to Microsoft's piss poor scheduler/optimization for ryzen. [Remember microsoft only "otpimized it" when AMD and Microsoft collaborated on the Surface when the 3000 series and x570s came out.]

  • Don't forget Intel and Microsoft have had a history of crippling AMD's performance within the past 2 decades that still affects some software today: How to Bypass Matlab's 'Cripple AMD CPU' Function - ExtremeTech. If you don't have software after Windows 7 Service Pack 1(2013) there is always a small program called "Intel Compiler Patcher".

But do not worry, I believe Ryzen can have much less IL than Intel, especially now due to all of those vulnerability patches from Windows Updates. Intel are taking 15-20% performance hits and even have hyper threading disabled on older systems which is why so many people are switching to AMD right now! YouTube

Obviously I do not have access to a 1000fps camera like Tech Yes City or Battle Nonsense but I can feel IL differences along with others and it matches people's research to who do have 1000fps cameras. This led me on the long journey to find all the best tweaks possible to get back my mojo. Now this entire Abstract was  focused on hardware input lag, which is an entirely different beast in itself, but now it's time to talk about all the things you can do software wise.

EDIT: Windows 10 feels more sluggish since 1809 because they've permanently set QueryPerformanceFrequency to 10mhz instead of the smaller one we've had before. This is due to Intel's spectre and meltdown vulnerabilities. {Dammit again Intel ruining it for all of us.}

Best Tweaks

  • Windows 10 Language Spyware Bug You have to set your language to English Philippines or English Israel while you remove the other language packs. English US and English UK seem to be laggy. However, I believe this tweak "seems" to work on 8.1 as well, maybe even 7 but haven't tested enough.
  • Set GPU Priority to 8 and Priority to 6 in System Profile Tasks.
  • TCPOptimizer I have no clue which settings are the best yet cause there's just so many variables. Feel free to tell me your best settings. Make sure to use optimal preset settings first, then custom configure from there. You can use this in place of setting System Responsiveness to 0. (read on to learn more)
Combining these 2 Guides have ascended me from a mere mortal back to reclaiming my throne. It is as if the sun and moon kissed. Just tested it for a few hours on my FX build and I was getting headshots, drifting corners, and counter crushing street fighters like nothing. Back then when I had input lag, I always feel like my game engine was like a second behind. Now I regained my mojo(I'd say I'm back 97%) and I haven't even installed official AMD GPU drivers yet! However there is much more testing to do. Right now I am using Windows 8.1 updated (with Classic-Shell/Open-Shell to disable AERO) with almost everything disabled on BIOS. I do have HPET and CSM enabled in BIOS though(you can read why later on in #Current Research). I can see why overclockers can usually feel a difference; it's not just because they are disabling features for a stable overclock, but they are reducing input lag in the process!
Can confirm, that by resetting all the BIOS settings to Load Optimal Defaults, I have felt
the system is more sluggish and has more stutters. Will test this out on my Ryzen build later.
The only way I was able to install Windows 8 with CSM off was to use a customized pirated CD
ISO {made by Generation 2} on my CD drive connected through SATA. But it wasn't installed in legacy mode it was defaulted to UEFI!  Will try true Legacy mode install next time.

Current Research

Edit: Turning off APM master mode feels terrible and introduces stuttering(AM3+ Boards).

Other huge Tweaks:

AMD GPU Tweaks:

Tin Foil Tweaks

MSI Utility. You can configure MSI line interupts manually but MSI utility just so much more conveni...

Ending Notes: Now that I provided you several hundred tweaks you can try out, you can do so yourself. Yeah it is "placebo" but I can certainly tell the difference as a competitive gamer. If we could feel the difference between V-Sync on and off, why is it so farfetched that me and many others can feel differences in these tweaks?
None of us have 1000fps cameras at our disposal but we do have experience, and I'm sure there's other competitive PVP gamers out there who can definitely tell the difference in their machine's performance and any feedback is much appreciated.

It's been PROVEN that these input lag differences Do Exist and coincide with my findings.

I usually rank at least diamond or masters in all the games I played: Overwatch, League of Legends, SFV but for the past 2 years I couldn't really play any of them competitively because of some over arching lag in my system. I mean I Could play them but it's just disgusting to play with higher input lag and hurts my soul. First 3 hours after tweaking and switching hardware around I finally moved on from diamond to masters in Overwatch and the difference is immediately noticeable if I switch back. Flipping through options I can definitely tell the difference. It might just be better frame delivery or better consistency but whatever It is, it makes my system more responsive in desktop or games. There is however still more testing to be done.

Bonus Content

Quote: Originally Posted by r0ach

There is no fix. Windows XP was a hardware accelerated desktop, then Win 7 wasn't, then Win 8.1 was again. This is why desktop cursor movement vs exclusive full-screen 3d mode feels the same in Windows 8.1 but not Windows 7. What's bizarre is Nvidia doesn't support Windows 8.1 on 2060-2080 series but does on 1600 series. I refuse to use Windows 10 New World Order edition myself. It's Microsoft attempting to transition to a fully locked down, Apple-style OS, and I would use it solely as a game box and nothing else due to that, but cursor movement is worse than Win 8.1, so I have no use for it at all.

Reply: By RamenRider

Windows 10 pre October 2016 was actually great for input lag and gaming, kinda like 7 and 8.1. Before they forced in the Windows Optimization feature. They did something so horrible that de-synchronized the desktop mouse movement and in game mouse movement forever. Before I remember changing the display scaling, such as 100% magnification to 125%, and it would affect the mouse movement or dpi in game. It was amazing, it was almost like cheating as if the magnification increased the hitboxes; or just adjusted the dpi resolution to make it easier to move/accelerate. Worked for Windows 7 and 8 as well. Whatever it was, it was a slice of heaven.

This would mean I need to also test out Windows 8.1 for gaming performance.

Back to talking about the input lag defenders.

Look how they even attack and downvote this guy asking the same questions!

This poor guy is just asking a question and everyone is berating and downvoting him for no reason? You don't see anything wrong with this? Maybe it's not me or anyone else curious that's in the wrong. Turns out all of those naysayers were proven wrong in that thread when Tech Yes released his video a few month later!

Oh the Irony

Final Notes

 I have tested GTX 970 with my Ryzen but the difference is nonexistant. The Windows 10 1903 upgrade was much more significant. I did try out default AMD GPU drivers that did not include chill and anti-lag but there is no noticeable difference; same rules apply, as turning off enhanced sync feels better, but the only real major changes are at the hardware level. Switching to R9 270 made the biggest difference because in performance, because the RX 580 IL is at a hardware/bios level that even affects people with Intel. I also would love to test out Ryzen 2 differences as well, but I do not have much time or money anymore as I am back in school. Hope this helps though.

Just tested my FX build with Lhun and r0ach guides and it feels amazing. However parts of their guides conflict and everyone's motherboard is different, so I have to find my own path. Unfortunately Latest Adrenaline 2020 drivers do not work with 8.1  but it feels good even if I am using only 17.x drivers(maybe due to no AMD overlay?) Make sure to test out CSM Legacy, Disable Fullscreen Optimization, Disabling HPET, Lhun's guide, Windows 8.1 ect.

13 Replies
Volunteer Moderator

Thanks for the guide

Journeyman III

FX8320 4.65Ghz 232BLCK AMD FX-8320 @ 4639.81 MHz - CPU-Z VALIDATOR  with CM Hyper212
8GB HyperX Fury 1866Mhz @ 2175Mhz CL11
Gigabyte 990XA-UD3 with the stock FX heatsink without the fan OVER the VRM heatsink on the motherboard [yeah, absurdly enough it works like a charm].

Since reading this tutorial i have reverted from 20.2.1 to 17.9.3 >> Input lag decreased. Idk if it has something to do with the Radeon Relive but it worked like a charm.

Enabled HPET in bios, disabled platform clock with bcdedit >> Timer resolution now stable at 0.5ms through ISLC

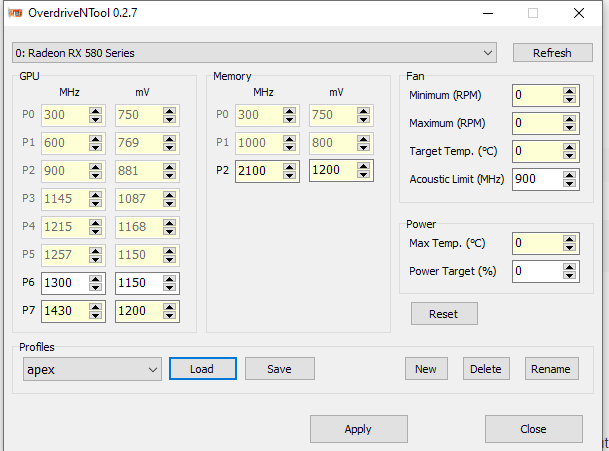

To overclock the gpu skip the wattman / msi afterburner >> i'm using profiles in OverdriveNTool.exe  0.2.7  with disabled p profiles only last profile enabled.
[the latest overdriven is for crimson 18+ ]

Works like a charm and no P state fluctuations during gameplay.
No matter what PC you have, get a UPS, even an old one. Trust me it can Fix your input lag stutter too if the Power Supply gets different voltages.
These tests are done on a CRT monitor to eliminate any Display Lag. No noticeable difference between DVI-D converter & DP port converter on my RX580. Will try out with my HDMI to VGA cable soon.
[the AG6200 chip is the best Digital to analog converter with less than 1ms input delay. the 27.2 is from the display itself cuz its LCD >> as seen here ]

Since i can feel the difference between 144hz and 160hz i think i'm able to see if there are some problems with the input lag through the drivers.

17.9.3 work flawlessly in apex with no FPS drop or performance hit as far as i tested. Everything is the same as in 20.2.1

///////////// OVERCLOCKING ON FX AMD FX-8320 @ 4639.81 MHz - CPU-Z VALIDATOR  ////////////

Another thing to notice if you have an old platform as me :
OVERCLOCK YOUR RAM TO THE WALL [FX people , OC your NB, CPU and use the stock FX cooler as VRM heatsink over the original motherboard VRM heatsink with some thermal paste between them - yeah it works wonders, use zipties]
Ram improvements in my PC >>
1] Default HyperX Fury 1866Mhz CL10-11-10-35-45 1.5V
OC 1 : 1866Mhz CL9-11-9-27-36 1.6V
OC 2 : 2175Mhz CL11-12-10-33-44 1.65V CPU-NB:+0.150 [IMPORTANT]
OC 3 : 2300Mhz CL12-13-11-35-46 1.65V CPU-NB: +0.150

After 2300Mhz my Board wouldn't set the memory in dual channel so i stopped. Since i wasn't able to set it to 2400Mhz the CL11 2175Mhz with tighter timings is faster and more stable on the FX processors.
Do your own testing, you'll crash many times, but it's worth it at the end.

Set NB to 2200Mhz together with HT at 2200Mhz. Set the BCLK up to 240 if your motherboard is able to stand the pressure and heat. Set Load line calibration to Regular [100%] (medium overvolts the cpu and makes it hotter). Check the DRAM Channel in cpu-z if your motherboard can withstand high mem freq in dual channel.
Pump that baby up to 4.5Ghz with +0.050V on the Core and +0.150V on the CPU-NB if you oc your ram.
The difference between 4.4 > 4.5 > 4.6 and 4.7 is noticeable but it generates a lot of heat. Don't go over 0.1V on the CPU Core and you're good to go. Keep the CPU bellow 70C to not get CPU Throttling.
Don't try this on 970 Chipset. 970 Boards don't have VRM cooling and they have less phases, which means they will heat up faster and can [as i have killed 2 boards myself before] FRY the VRM. Overclock above 0.05V on CPU voltage ONLY on 990X / 990FX boards.
Great tutorial bro, i hope my information donation will help out some people. people have problems with useplatformtick yes, but using it with disabledynamictick no has good results for some reason. I just don't know anymore but one of these settings are good.

But I am using 8320 on M5A99X Evo r2.0 with Corsair Dominance 2400hz. I use something similar to option 2. I just set DOCP on with 2133hz memory. BCLCK at 224 and I get 3920-4.0ghz, 24388-2464ish memory, NB Freq, and HT Link Speed. It's great that I was watching some random FX video form Tech Yes City Is the FX8350 Any Good in 2018? - The $188 FX-8350 USED Gaming PC - YouTube  and he showed me how to reapply paste to the NB and SB vrams. I did this and it turned out they had disgusting gunk underneath which probably overheated them. Before I wasn't able to use these settings without setting memory to 1866hz and now there's no problem at all.

I'm just wondering if I can undervolt to set it to something like the 8320e.

Adept I

Why is freesync diabled? don't you get screen tearing? Anyways don't always use AMD anti lag bacause if yout GPU isn't maxed out (99% Utilization) it will give you more lag. Here is proof

There is so much going on,including contradicting posts, its hard to tell what is helpful or not especially without proof/tests being done.

I did follow Fr33thy's video and he updated something in the comments.

I always disable mouse acceleration in mouse options and use Prio to set games to high priority. Now im disabling fullscreen opt. Like Fr33thy I also use ISLC to set the timer to a perfect .5. That's all I do for input lag.


Screen tearing is actually a good sign of low input lag from GPU outputting to the monitor. It can always be mitigated by having more HZ on your monitor. Any type of sync will always have input lag.

That video by Battle Nonsense is both wrong and outdated. Remember I have links on every line of the guide, check them out.

He did not measure the input lag of Chill and those drivers have gone through tremendous changes since then. Even in later videos he found out that having less than 99% utilization will always have less input lag. It's always different for every game and every driver update. Right now it seems to be fixed though and Anti-Lag seems to work properly with all games.

You are using Windows 10 I assume? Try out Override High DPI Scaling set to System it's kinda like the same thing as disable fullscreen optimization, but it may just be placebo. However the best one you should try is that English language tweak, everyone says it works.

Adept I

I'm just being the devils advocate at this point, but anyways Battlenonsense's video, had nothing to do with chill, that's a completely separate feature not enabled. Also, I'm quoting AMD here, "The new Radeon Anti-Lag feature in Radeon™ Software is designed to help reduce input lag in GPU-limited cases." This feature is still for the gpu being limited which is what battlenonsense tested. I know any type of sync will have input lag, but freesync or g sync is close to nothing, AND and turning on windows 10 game mode does decrease input lag, both proofs here FreeSync vs. G-Sync Delay Analysis - YouTube .

Adept I

A lot of the stuff you posted is truly good, its just a ton of info that goes crazy in depth and is very specific while some of these tweaks seem to hurt some systems idk... I was just looking at some of the reddit posts. I'm also worried about whether some of this stuff is truly good, like with evidence supporting it.

Maybe a more simplified version that just has steps of what to do?

I just edited a guide I made for personal use. Here is something like I would do,/ currently use

-Turn windows 10 game mode on (search for it in start menu, it's in settings)

-mouse acceleration off (this is very bad for aim) (this can be done by using MarkC mouse fix below)
--Markc mouse fix (download)
don't change pointer speed from the default (6/11), just an fyi

-Graphics settings on high for .exe's, like games (search for graphics settings in search menu and add them to it)

-Ryzen high performance (In Chipset drivers can be found on motherboards website) is a power option/power plan (this will change if you use follow Process Lasso steps)

-Diable fullscreen optimizations (right click on exe's on desktop and (go into properties, compatability) Fixes windows 10 fullscreen issues/ input delay

-Disable xbox game bar (search "game bar settings" in start menu) (everyone agrees this is trash)

-Install Process Lasso and enable performance mode (in main setting) and set games to high priority (literally right click on an exe. in Lasso) (download)


--Set timer resolution to 0.5ms in it (leave rest default)

-fr33thys timer videos (FOLLOW but the steps he did are below and corrected by him)

(what he did)
cmd - admin
bcdedit /set useplatformtick yes

-Disable HPET in the OS (updated from Fr33thy)
cmd - admin
bcdedit /deletevalue useplatformclock
(if it says ssomething like value not found your good)
-New drivers have a E-sports mode that enables AMD antilag, sharpening, and changes tessellation. Antilag and sharpening are usually not good.
-Sharpening usually makes games look terrible (overwatch)
-Don't use AMD anti-lag or NVIDIA low latency unless you are GPU bound or use it if your GPU is going above 95% utilization is a game. (soure)
-Cap your frames! FPS or framerate is directly related to input lag, the more fps, the less input lag. more below (ideally 144hz display)
--If your fps is all over the place, your input lag or frametime varies giving you inconsistent input lag which will hurt your muscle memory!
-Source for windows 10 game mode being ON
(I have data and proofs of all of this, some is includeed in FR33THY'S video
-Source for Disabeling fullscreen Opt., details included from microsoft engineer
Credit: FR33THY, Battlenonsense (YouTube)

Journeyman III

Update May 2020
I am using windows 1709 , ReviOS u3.5 version for the lowest input lag Download here. With this OS , PC boots in less than 10 seconds from bootloader to desktop.
I updated the bios to FEh on my board, updated the microcode too Download here for 990XA-UD3 Rev 3.0.

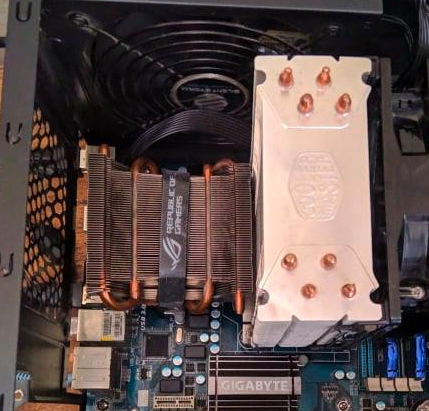

I added 90mm fan to blow directly on the VRM and on the Northbridge (diagonal placement). I stuck that thing with hotglue on the HyperX Fan and the Audio inputs on the bottom left.
Also switched the direction of my HyperX 212 Fan.

VRM Cooling

Benefits of this configuration >> Cooler PSU + WAY cooler VRM+NB
The only problem right now is the HyperX212 inability to whitstand the heat above 5Ghz.
AMD FX-8320 @ 4898.61 MHz - CPU-Z VALIDATOR
Current Settings. LLC Medium. +150 on CPU/NB +150 on CPU
HT Link on this board loves frequencies around 2600Mhz, no visible differences in temps with lower HTLink, so no need to downclock it (may vary on other boards)

Lowering the height of the Hyper212 Fan, didn't change the cooling capability of the heatsink, but increased the cooling of the VRM modules. They're not even warm to the touch.

Other tweaks > Paracord your mouse, worth every penny. Feels almost wireless. You can do it with wide shoelaces that look like paracords too.

I completely agree with Lardo tweaks, those are the best , taken from the Fr33thy's videos.

I forgot to ask, would this work on my M5A99X Evo Rev 2.0? It's 990X chipset I think.

Journeyman III

Great guide dude, thanks a lot!

Adept I

I wouldn't screw with windows timer or any other cmd edits, as they are outdated and people are blindly following them..

Journeyman III

Also try turning on the mouse trail option in the mouse settings. For some reason this reduces input lag.

Journeyman III

RamenRider, was it you posting on blurbusters a while ago regarding input lag, I have something awesome for you to try regarding MPO (MultiPaneOverlays) directly affecting DWM vsync, reach out to me on discord kizzimo#0792


It will certainly finish off your quest for input lag free gaming
